TechnoDOLLY 25’

Key Specifications

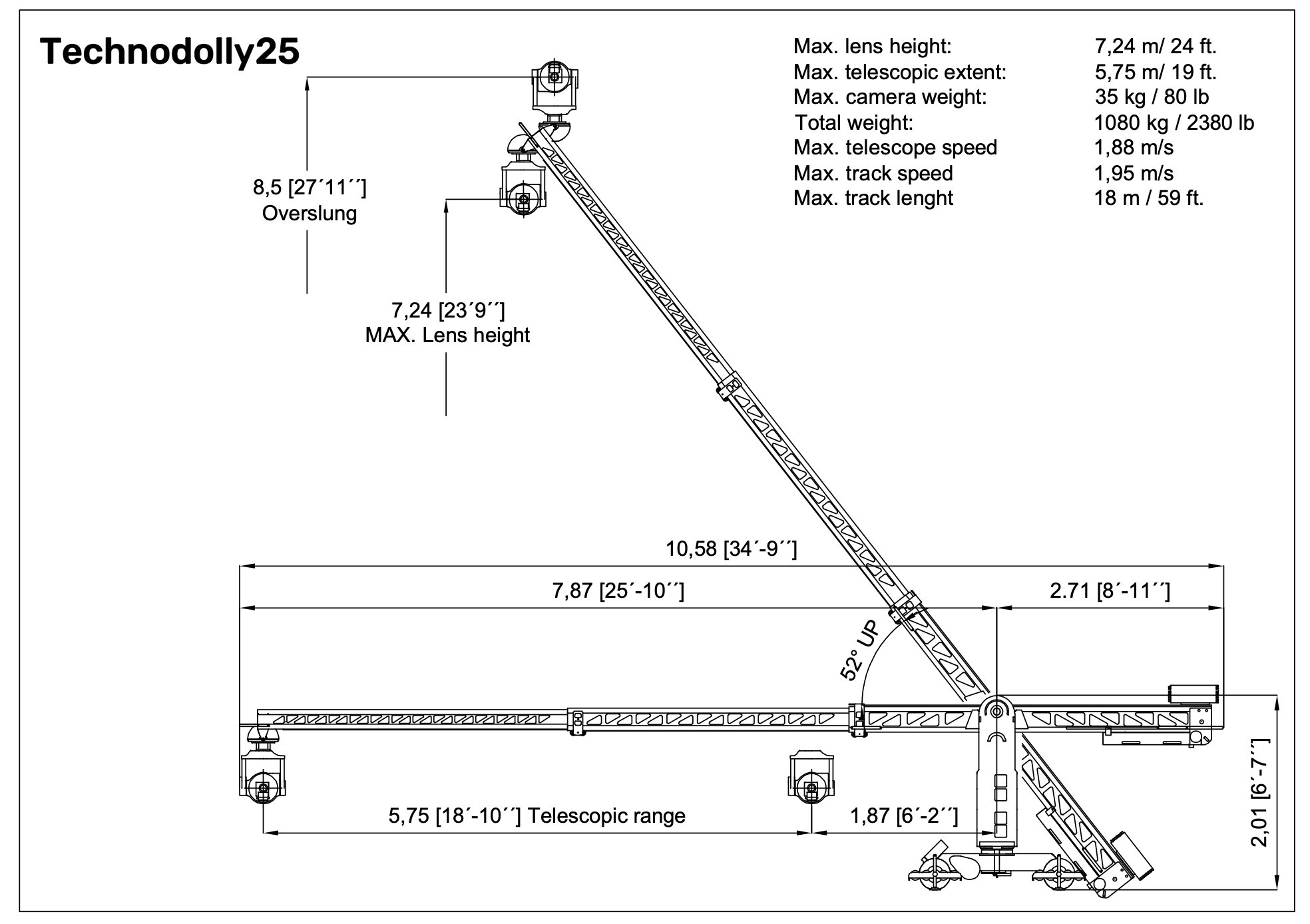

Specifications of the telescopic arm

Min. lens height when fully over-slung 28 ft.

Min. lens height under-slung 24 ft.

Min. length from center 7 ft.

Max. length from center 26 ft.

Max. telescopic movement 19 ft.

Max. speed 6.2 ft/s

Max. Weight of the telescopic arm 290 kg

Max. Weight of the electronic column 260 kg

Total weight including any camera and lens up to 13 kg 1100kg

Equipment Description

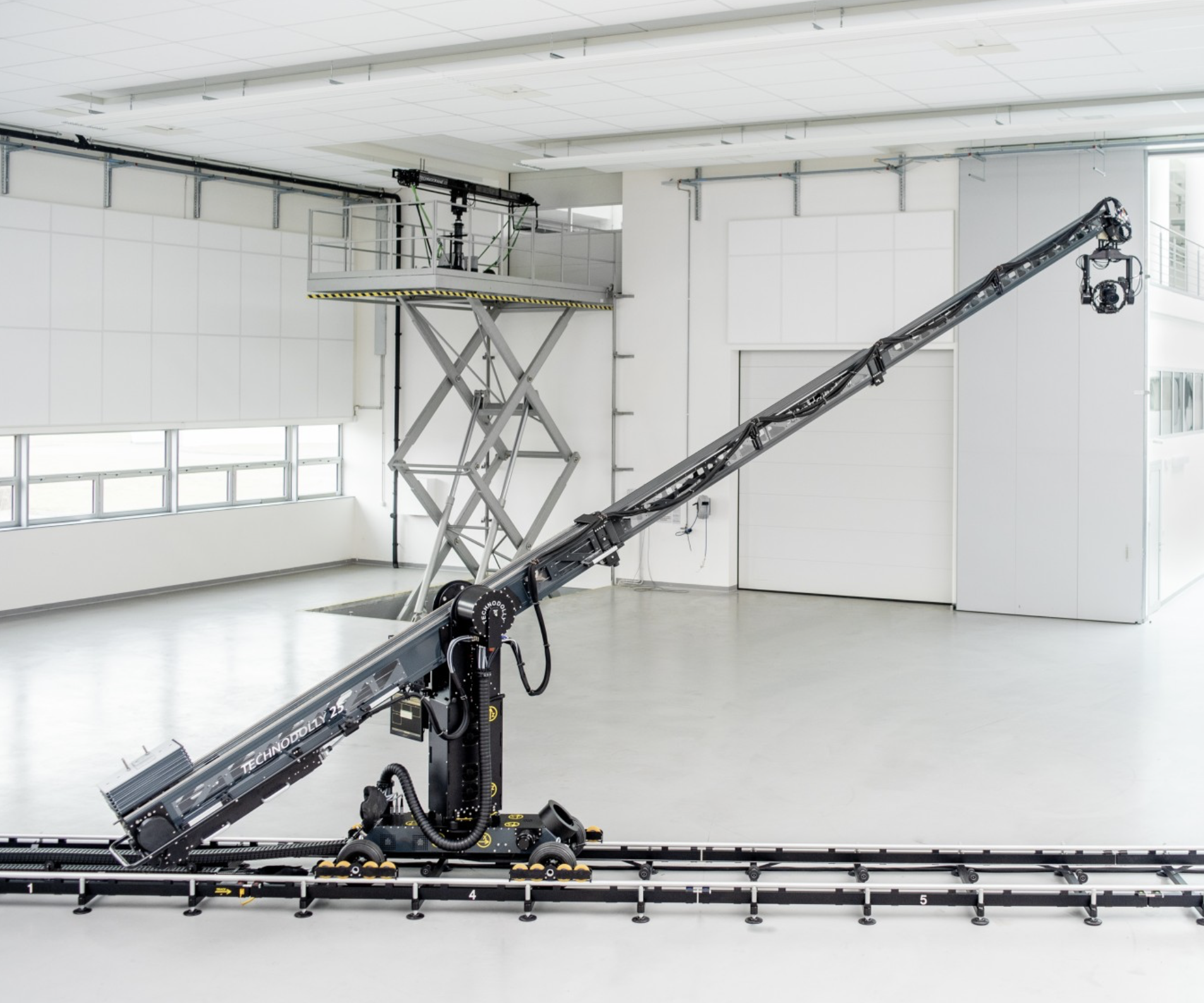

The fully automated TechnoDolly features three telescopic crane beams, mounted on a mobile base with pneumatic wheels. The gyroscopic stabilized TechnoheadS provides precise pan and tilt capabilities, supporting cameras with a payload of up to 35 kg or 77 lbs. Operators can completely program and control the crane directly from a workstation.
