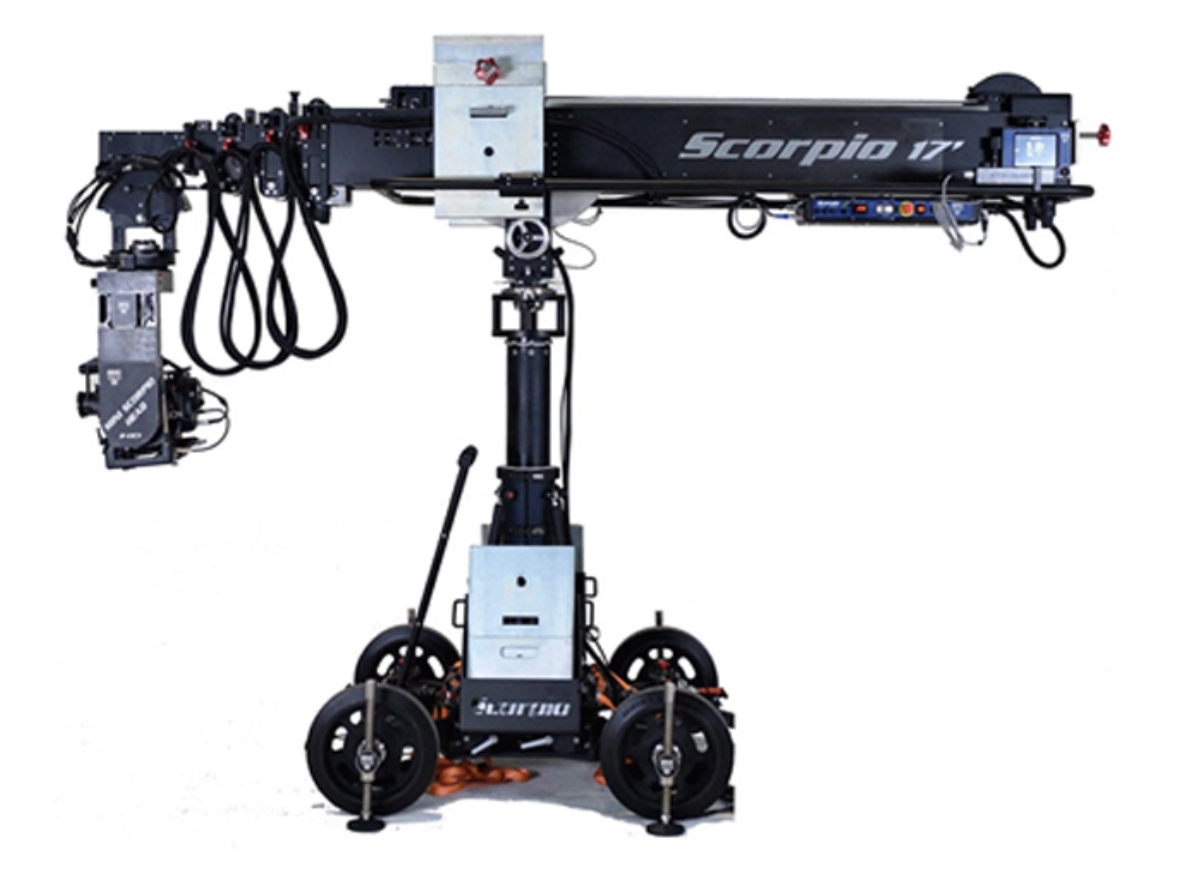

Scorpio 17’

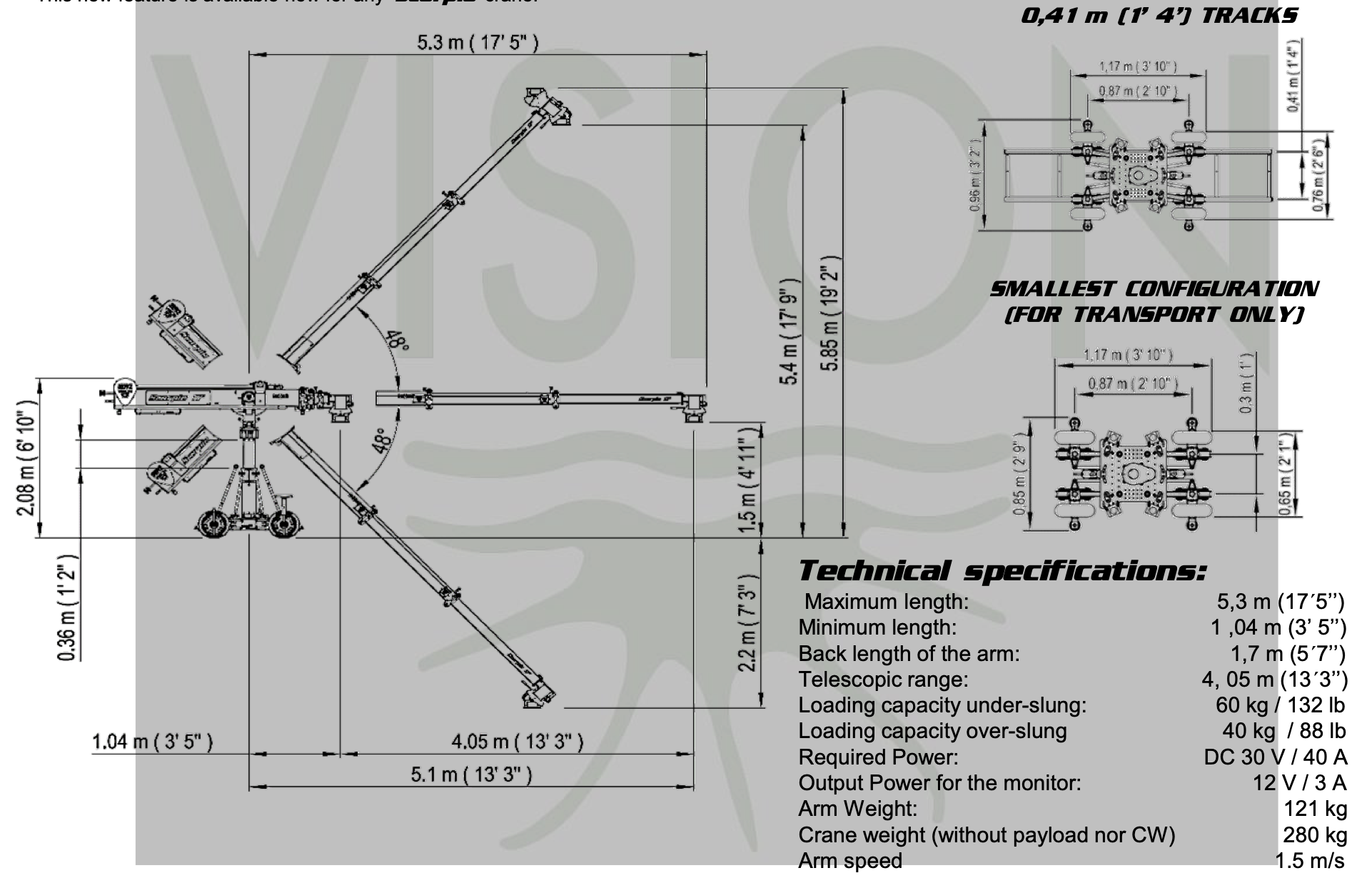

Key Specifications

FEATURES

Two different operating modes:

• Electronic: A standard operating mode that enables electronic telescopic movement, powering the crane via batteries or its power supply. It delivers the renowned performance of Scorpio telescopic cranes, with smooth, highly precise movement at both low and high speeds.

• Manual: A new operating mode that allows the operator to move the telescopic arm manually by hand, while the Levelling Head automatically maintains the horizon.

The display on the electronic control box is removable, allowing the crane to be operated with or without the screen. Without the screen, the crane can still perform movement and basic functions, such as setting electronic limits or activating automatic arc compensation. With the screen connected, all advanced equipment menus can be accessed, including:

• On-screen display of arm reach, vertical and horizontal angles, optical-axis height in meters and feet, speed, and damping.

• Telescopic arm movement generator in relation to horizontal or vertical movement.

• Ability to record and memorize telescopic arm movements.

• Stop-sequence programming for different telescopic arm reach modes.
