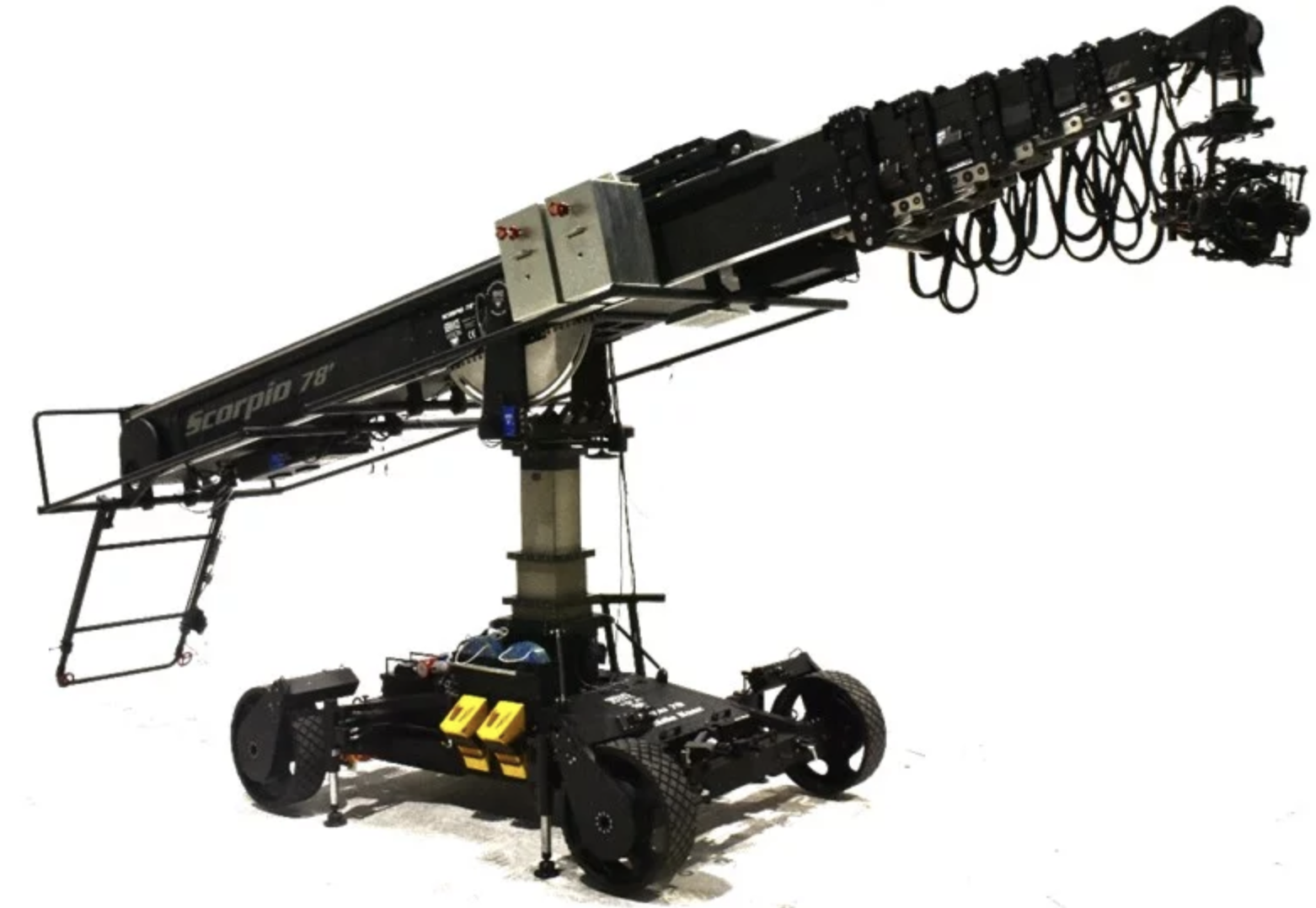

Scorpio 78’
Telescopic Crane

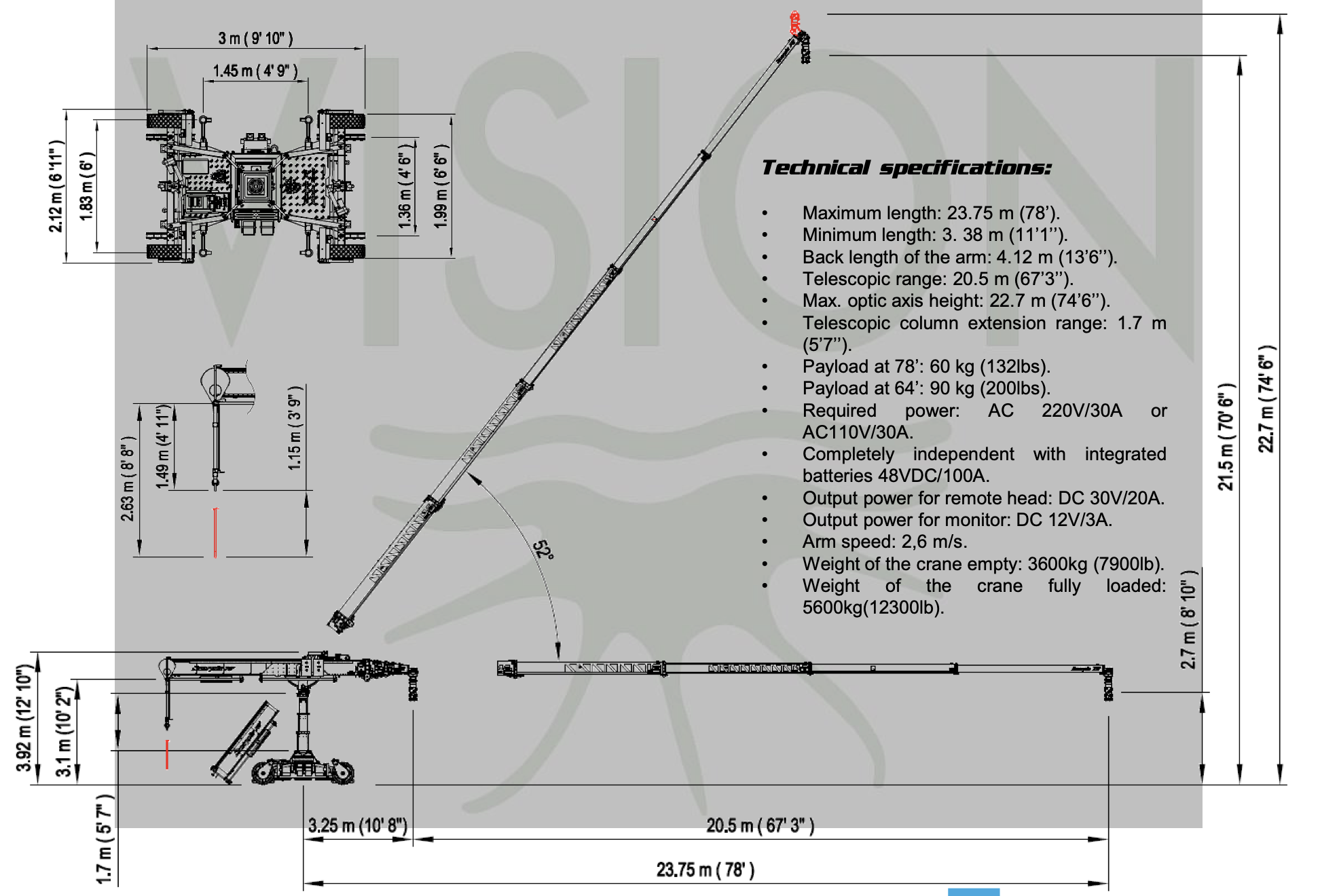

Key Specifications
Maximum length: 23.75 m (78′)
Minimum length: 3.38m (11’1″)
Telescopic range: 20,5 m (67´3´´)
Max. optic axis height: 22,7 m (74´6”)
Telescopic column maximum extension: 1,7 m (5´7”)
Payload in Underslung: 60 kg. (132lbs)
Payload in Overslung: 90 kg. (200lbs)
Required power: AC 220V/30A or AC110V/30A
Output power for remote head: DC 30V/20A
Output power for monitor: DC 12V/3A
Equipment Description
Scorpio 78’ is the longest telescopic crane with human control capacity.
Using the same development line used with the Scorpio 45’ and all the software and hardware improvements from all the Scorpio Cranes, Servicevision has been working to design the longer sister of the 45’ with perfect balance in measurements when retracted for transportation and when extended for range.
FEATURES
Programmable limits on the telescopic movement of the arm.
Programmable movements of the telescopic arm
Motion Generator of the telescopic arm respect to Pan or Tilt.
Data displayed on screen: arm range, height of the optic axis and Pan and Tilt angles.
Arm speed and Damping adjustable and displayed on the screen.
Programmable Stop Sequence.
Pan, Tilt and Arm encoder output for Motion Capture jobs.
4 telescopic sections plus Central Arm
Smooth movement in high and slow speed
Noise reduction system of the telescopic arm movement
The head can be mounted Underslung or Overslung
Dynamic counterweight system
Adjustable fluid in Pan and Tilt
55º inclination on the Tilt arm
2 telescopic column to higher 2 position
Selectable width of the articulated legs with lockable position
